PCD Semi-Finished Dies Services
Professional PCD die pre-forming and semi-finishing services. Precision pre-formed dies ready for final polishing.
Sino Seiko – Product Advantages
- Premium International PCD/PCBN Materials
- High Precision Manufacturing & Rigorous Quality Control
- Excellent Thermal Conductivity & Impact Resistance
- Factory Direct – Best Value
- Full Technical Support & Customization
Description
Service Overview
SINO SEIKO（Sino Qtech Industries Co., Ltd.） provides professional PCD semi-finished die services, delivering precision pre-formed dies ready for final polishing and sizing. Our services cover the complete spectrum from PCD blank selection and carbide substrate preparation to pre-forming with tight dimensional tolerances — reducing your in-house processing time and ensuring consistent quality.
Working Principle
PCD semi-finished dies undergo precision grinding and electrical discharge machining (EDM) to create the preliminary die profile. The pre-formed die hole is machined to within 0.01mm of the final dimension, leaving only a minimal amount of material for final honing and polishing. This approach ensures that the final die achieves optimal surface finish (Ra ≤ 0.02μm) while maximizing the service life of your finishing tools.
| Parameter | Specification |
|---|---|
| Pre-Forming Tolerance | ±0.01 mm |
| Surface Finish (Pre-formed) | Ra ≤ 0.4 μm |
| Final Finish (After Polishing) | Ra ≤ 0.02 μm |
| Die Angle Accuracy | ±0.5° |
| Blank Diameter | Φ16 – Φ40 mm |
| Processing Methods | EDM, CNC Grinding, Laser Drilling |
| Lead Time | 7–15 working days |
Key Advantages
Receive dies ready for final finishing — skip the initial pre-forming stage in your workshop.
Factory-controlled pre-forming ensures dimensional consistency across every batch.
Reduce capital expenditure on pre-forming equipment and minimize material waste.
Applications
Wire drawing dies, tube drawing dies, bar drawing dies, and specialty profile dies for copper, aluminum, steel, and specialty alloy processing.
Related Products

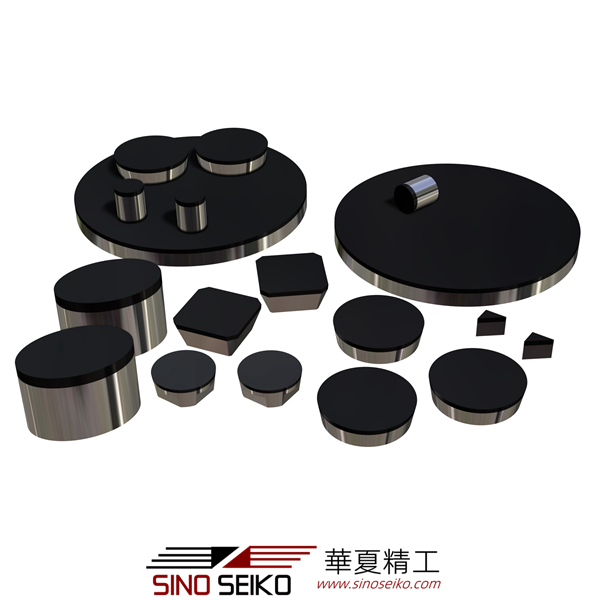

Explore our complete range: PCD Inserts | PCD Cutting Tool Blanks | Diamond Grits & Powders | Custom Solutions
📞 Contact Us Today
Need semi-finished PCD dies? Let us handle the pre-forming — you handle the final finish.
📧 Email: [email protected]
📱 Phone/WhatsApp: +86 133 5377 2661
📍 Location: Zhengzhou, Henan, China
Sinoseiko located in Zhengzhou——The biggest diamond industrial area in the world. Cooperated with outstanding manufactures and the most advanced PCD Die Blanks For Wire Drawing performance test lab in China. This enables Sinoseiko to provide our customers with practical solutions for their PCD Die Blanks For Wire Drawing needs..With more than 20 years developing in this industry, Sinoseiko had witnessed the first manufacture of PCD die blanks manufacturer established in Zhengzhou, China, and Zhengzhou has been the manufacturers worldwide who can produce super large PCD die blanks biggest size in Φ40mm by 25mm height. Till now, Sinoseiko PCD has been used in many countries and areas, and is well received by customers for longer service life, precision wire, and competitive prices. Applications: Copper wire, Aluminum wire, Stainless steel wire, Coated stainless steel wire, Tungsten wire, Molybdenum wire, Welding wire, Large diameter tubes etc. Advantages: 1. Sinoseiko can supply full sizes die blanks from D6 to D36+, from 1 micron to 50 micron grain size. 2. Sinoseiko can supply self supported die blanks, heat-resistant die blanks, and tungsten carbide supported die blanks. 3. Sinoseiko PCD can be used in hard wires drawing. 4. Sinoseiko PCD has better D-D bonding, which makes PCD more compact and uniform, can achieve high abrasion resistance, anti-cracking. 5. Sinoseiko has short lead time. 6. Sinoseiko has competitive prices.
| ADDMA No. | Product No. | Dimensions (mm) | Concentricity (mm) | Grain size(μm) | Maximum recommended hole size(mm) | ||
| ∅D(Total dia) | ∅d(Diamond) | t(Thickness) | |||||
| D12 | 415SP | 8.12 | 4.2 | 1.5 | 0.25 | 3,5,10,25 | 1.0 |
| D15 | 423SP | 8.12 | 4.2 | 2.3 | 0.25 | 3,5,10,25 | 1.8 |
| D18 | 429SP | 8.12 | 4.2 | 2.9 | 0.25 | 3,5,10,25 | 2.3 |
| D21 | 638SP | 13.65 | 6.9 | 4.0 | 0.35 | 3,5,10,25 | 3.5 |
| D24 | 653SP | 13.65 | 6.9 | 5.3 | 0.40 | 3,5,10,25 | 4.6 |
| D27 | 1270SP | 24.13 | 12.9 | 7.5 | 0.50 | 5,10,25 | 5.4 |
| D27 | 1285SP | 24.13 | 12.9 | 9.0 | 0.50 | 5,10,25 | 5.8 |
| D30 | 1212SP | 24.13 | 12.9 | 12.0 | 0.50 | 5,10,25 | 7.6 |
| D30 | 1512SP | 24.13 | 15.6 | 12.1 | 0.50 | 10,25 | 9.0 |
| D33 | 1515SP | 24.13 | 15.6 | 15.1 | 0.50 | 10,25 | 10.5 |
| D30 | 1813SP | 30.0 | 18.3 | 13.5 | 0.60 | 25 | 11.2 |
| D33 | 1815SP | 30.0 | 18.3 | 15.5 | 0.60 | 25 | 12.0 |
| D36 | 1818SP | 30.0 | 18.3 | 18.5 | 0.60 | 25 | 12.7 |
| | 2518SP | 50.0 | 25.0 | 18.0 | 0.70 | 25 | 14.0 |
| | 2520SP | 50.0 | 25.0 | 20.0 | 0.70 | 25 | 15.7 |
| | 3020SP | 50.0 | 30.0 | 20.0 | 0.70 | 25 | 17.0 |
| | 3022SP | 50.0 | 30.0 | 22.0 | 0.70 | 25 | 19.0 |
| | 4025SP | 67.0 | 40 | 25.0 | 0.70 | 25 | 25.7 |
